| Fa'ata'ita'iga | SG-IR850-8M |
| Mamao Lelei | ≥800m |
| Faiga | VCSEL |
| Umi ole galu | 850±10nm (940nm, 980nm mo le faitalia) |
| Malosiaga Ulufale | ≤20W |
| Leisa Chip Malosi | 4.4±0.2W |
| Malosiaga o le Malamalama | 4.0±0.3W |
| Laser Beam Angle | Matagi Mamao 2.0°, Mamao lelei>800m, Laumei Spot Diameter<φ28m |
| E latalata i le Angle 70°, Lelei Mamao>80m | |
| Faiga Pulea | UART_TTL, RS-485, Tusi Taiala |
| Feso'ota'iga Feso'ota'iga | RS-485, TTL232, Pulea Tusia |
| Fesootaiga Fesootaiga | Pelco-D (9600bps Default, 4800bps, 2400bps mo le faitalia) |
| Auala Galulue | Fa'aauau |
| Soifua Auaunaga | > 30000H |
| Malosiaga Ulufale | DC12V±10%, 2.1A±0.2A |
| Galulue Vevela | -20°C~+60°C |
| Teuga vevela | -40°C~+85°C |

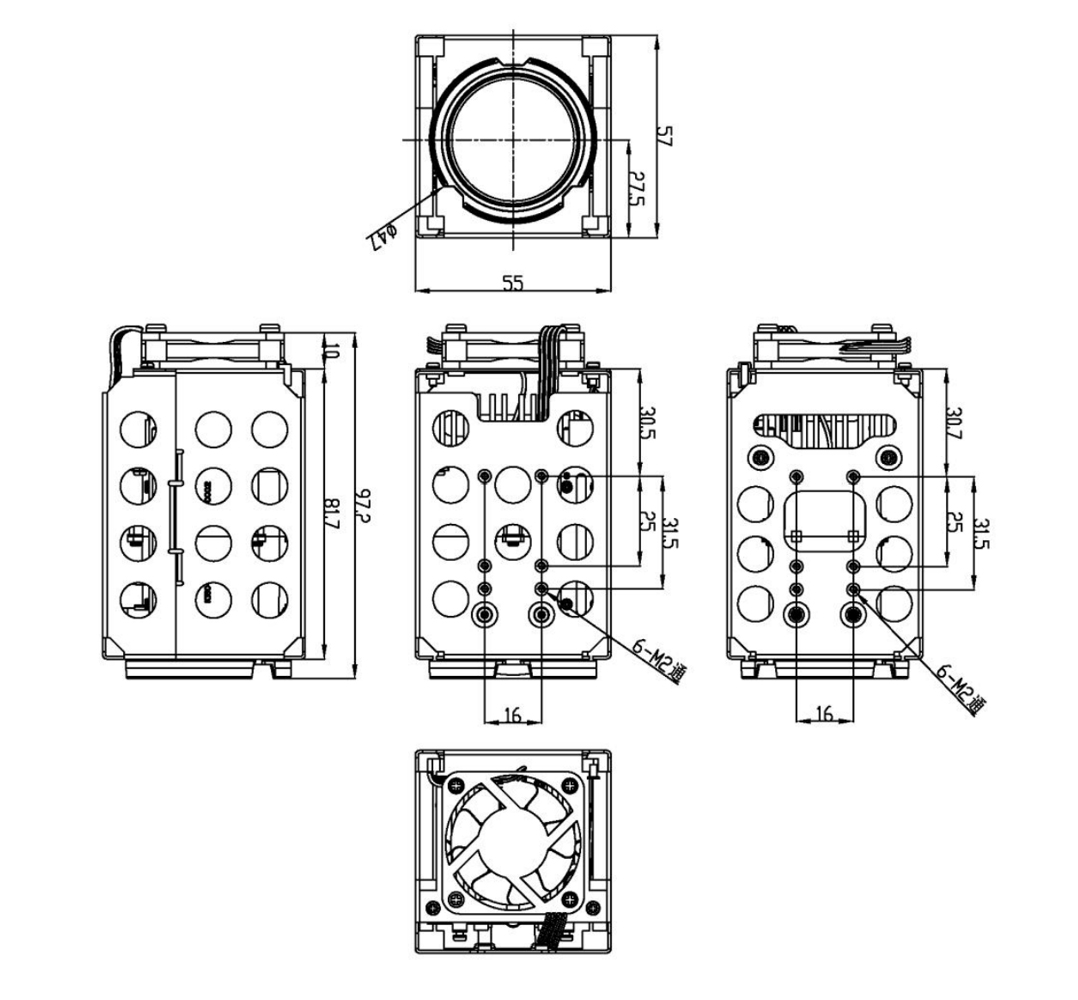

| Fua | 97mmx55mmx57mm |
| mamafa | 230g |
