2MP 60x 1200mm AI ISP Fa'avae Ultra Long Range Sapa Fetu Fetu'aiga pupuni i le lalolagi ma MIPI Lua Output Meapue Module

Fa'ata'ita'iga

SG-ZCM2060NMI-OG

Sensor

Fa'amatalaga Ata

1/1.7" GpixelTapuni lalolagi CMOS Sensor

Pika lelei

Pe tusa. 2.4 Megapixel

Mata tioata

Manulauti umi

20mm~1200mm, 60x Fa'asa'o Mata

Avanoa

F2.92~F11.37

Malae Va'aiga

H: 21.74 ° ~ 0.37 °, v: 12.33 ° 10 0.21 °, D: 24.85 ° ~ 0.42 °

Tapuni Taulai Mamao

1m~50m (Aotele~Teletele)

Saosaoa Tele

<10s (Optical Wide~Teletele)

DORI Mamao

(Tagata)

Su'e

Matau

Iloa

Faailoa

11,893m

4,719m

2,379m

1,189m

Vitio

Fa'amau

H.265/H.264B/H.264M/H.264.H/MJPEG

Avanoa Avanoa

3 vaitafe

I'ugafono

Auala autu: 50 / 60FPS @ 1920 × 1080; 50 / 60FPS @ 1280 × 720

Sub spream1: 50 / 60fp @ 704 × 576; 50 / 60FPS @ 352 × 28 288;

Sub spream2: 50 / 60fp @ 1920 × 1280; 50 / 60FPS @ 1280 × 720;

50 / 60FPS @ 704 × 576

Leo

AAC(8/16kHz) / MP2L2(16kHz)

MIPI Ata

50hz: 50fps @ 2mp (1920 × 1280)

60hz: 60fp @ 2mp (1920 × 1280)

Fesootaiga

Fesootaiga Protocol

IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, RTCP, RTP, ARP, NTP, FTP, DHCP, PPPoE, DNS, DDNS, UPnP, IGMP, ICMP, SNMP, SMTP, QoS, 802.1x, Bonjour

API

ONVIF, HTTP API, SDK, GB28181

Web Browser

IE, Edge, Firefox, Chrome

Tagata fa'aoga

E oʻo atu i le 20 tagata faʻaoga, 2 tulaga: Pule, Tagata faʻaoga

Teuina

Micro SD/SDHC/SDXC card (Seʻia oʻo i le 1TB) teuina pito, FTP, NAS

Telecast

Lagolago

Fa'afou le Firmware

E na'o le fa'aleleia o le firmware e ala i le Taulaga Network.

Mea na Tutupu

Gaio, Tamper, SD Card, Network

IVS

Tripwire, Su'esu'eina o le Pa, Fa'aoso, Mea Fa'ate'a, Saosaoa-Fesi, Su'esu'ega Ta'avale, Fuafuaga o le Fa'apotopotoina o Tagata, Mea Misi, Su'esu'ega Fa'anofo.

Fa'ailoga Fa'atatau

Tagata/Taavale

S/N fua faatatau

≥55db

Fa'amalamalamaga maualalo

Lanu: 0.05Lux/F2.92; B/W: 0.005Lux/F2.92

Fa'aitiitia Pisa

2D/3D/AI Fa'aitiitiga Pisa

Faiga Fa'aaliga

Ta'avale, Avanoa Fa'amuamua, Tapuni Fa'amuamua, Maua le Fa'amuamua, Tusi Lesona

Totogi Fa'aaliga

Lagolago

Saosaoa pupuni

1/1~1/30000s

BLC

Lagolago

HLC

Lagolago

WDR

Lagolago

Paleni Pa'epa'e

Ta'avale, Tusia'oga, I totonu, I fafo, ATW, Lamepa Sodium, moli auala, Fa'anatura, Tasi Push

Aso/Po

ICR(Ta'avale/Ta'iala)

Faiga Taulai

Ta'avale, Tusi Ta'avale, Semi Ta'avale, Tasi Push AF

Fa'aeletonika Defog

Lagolago

Fa'asa'o Mata

Lagolago, 750nm ~ 1100nm auala ole Optical Defog

Fa'aiti'itia o le Sausau o le Vevela

Lagolago

Su'e

Lagolago

EIS

Lagolago

Fa'afuainumera fa'atepa

16x

Pulea i fafo

2x TTL; E fetaui ma SONY VISCA ma Pelco Protocol

Fetufa'aiga

4pin Ethernet port, 6pin Power & UART port, 5pin Audio port,

30 pine MIPI

Fesootaiga Fesootaiga

SONY VISCA, Pelco D/P

Tulaga Faagaioiga

- 30 ° C ~ + 60 ° C / 20% i le 80% RH

Tulaga Teuteu

- 40 ° C ~ + 70 ° C / 20% i le 95% RH

Paoa sapalai

DC 12V

Fa'aaogāina Malosiaga

Malosiaga tumau: 5W, Ta'aloga malosi: 10W

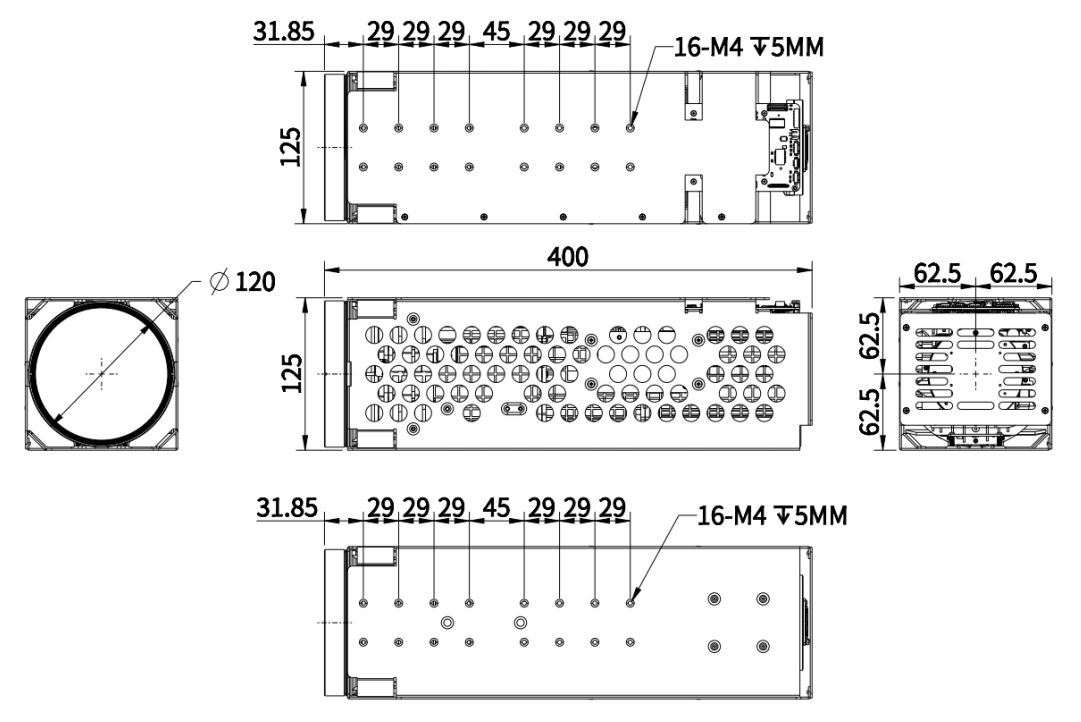

Fua (L*W*H)

400mm * 125mm * 125mm

mamafa

Pe tusa. 5kg
