2000m mamao le 1550nm infrared Lasser Musumantor module
Faʻataʻitaʻiga | Sg -IR1550-2K |
| AogaMamao | ≥2000m |
| Mode | Fiber homogenization laser |
| Galulu | 1550nm ±5nm |
| Faatafuna le malosi | <70W |
| Laser chip mana | 10W (2 * 5w) |
| Le malosi o le malosi | ≥8w |
| Moli le tulimanu | 0.8 ° ~ 70 ° (faifai pea Zoom) |
| Nofoaga lapoa | φ19m (@ 0.8 ° @ 2000m) |
| ZOO o le taimi | ≤3s (Latalata i le mamao) |
| Amataga taimi | <10s |
| AlavaCoaDiamepa | 400μm |
| Lata Puipuiga Lautele | Vasega iv (O le FDA, Iesc 60825) |
| Lata saogalemu mamao | 15m (mea taua) |
| Fesootaiga Lisi | Rs - 485, TTL232 |
| Fesootaiga Polokalama Polokalama | Pelco - D (9600BPS) |
| Galue faiga | Csalalau |
| Auaunaga Ola | > 20,000h |
| Faatafuna le malosi | DC24V ± 10%, 2.6 ± 0.3 |
| TaotogaVevela | - 35 ° C~+ 55 ° C |
| StausiTempe) | - 40 ° C~+ 85 ° C |

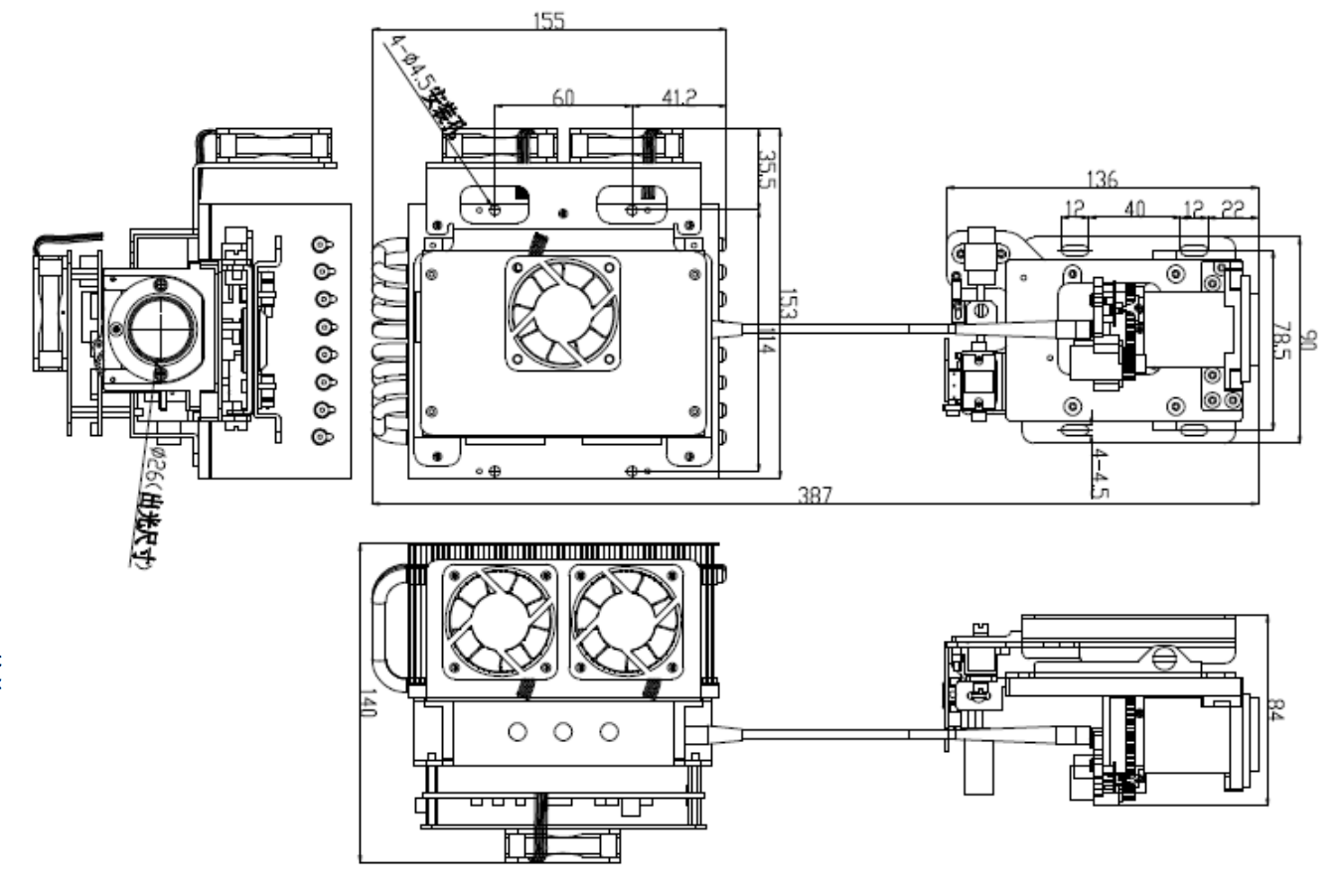

| Tulaga | 387mmx153mmx140mm |
| Mamafa | 3.5kg |
| Eletise eletise | |
| AFaailoga Tumau | Left / taumatau: ± 3 °, luga / lalo: ± 3 ° |
| Fetuunaiga sao | 0.01 ° |
