12um 640x512 USB Interput complectact tele le tele o le soifua maloloina
|
Faʻataʻitaʻiga numera |
SG - HTM06U2 - T9 |
SG - HTM06U2 - T15 |
SG - HTM06U2 - T19 |
SG - HTM06U2 - T25 |
|
Faletalimalo Module |
||||
|
Faafanua lagona |
Vox e le mafai ona fuafuaina |
|||
|
Max. Iugafono |
640 × 512 |
|||
|
Fua faatatau |
Fetuunai, 6hz i 30hz |
|||
|
PIXEL |
12μm |
|||
|
Tali Waveband |
8μm i le 14μm |
|||
|
Upega |
≤ 40mk (@ 25 ° C), F # = 1.0 |
|||
|
Tioata (taulai umi) |
9.1mm |
15mmm |
19Ma |
25Ma |
|
F numera |
F1.0 |
F1.0 |
F1.0 |
F1.0 |
|
Afaiov |
1.3mrad |
0.8mrad |
0.6mrad |
0.48MRAD |
|
Fanua o le vaaiga (H × V) |
48.3 × 38.6 ° |
29.3 × × 23.4 ° |
22.8 ° × 18.4 ° |
17.46 ° × 14.01 ° |
|
Min. Taulai Atu mamao |
2m |
5m |
7m |
8m |
|
Vevela fuaina |
||||
|
Vevela vevela |
- 20 ° C ~ + 150 ° C & 100 ° C ~ 550 ° C |
|||
|
Sini sao |
Max (± 2 ° C, ± 2%) i luga o le vevela vevela 25 ° C ma Hit Heart i luga 0 ° C |
|||
|
Vevela mamao (faʻavae i luga o le 0.65 × 0.65m) |
10m (mamao mamao) |
15m (mamao mamao) |
20m (mamao mamao) |
25m (mamao mamao) |
|
Le fiafia |
3 o le vevela fua o le tulafono ituaiga, 21 tulafono (10 togi, 10 itulagi, ma le 1 laina) |
|||
|
Faamatalaga Galuega |
16bt vevela faamatalaga |
|||
|
Ata Faaali |
||||
|
Faatusatusa fetuunaiga |
Ioe |
|||
|
Susulu fetuunaiga |
Ioe |
|||
|
Numera |
15 faapalepale o lanu fetuunai, le mautonu paʻepaʻe vevela |
|||
|
FFC (mafolafola fanua faʻasaʻoina) mode |
Taavale, tusi lesona, faasaʻoga i fafo |
|||
|
Fufui |
Ioe |
|||
|
Lautele |
||||
|
Hardware interface |
USB2.0 FPC |
|||
|
Mana |
DC 5V ± 5% |
|||
|
Malosiaga o Manumalo |
≤0.55w |
≤0.55w |
≤0.55w |
≤0.65w |
|
Vibration & Shock |
Vibration: Sinafudidal vibrasi, 20 m / s ², 3 - axis Shock: O le afa o le sine wave, 30 G / 11 Ms, 3 - Axis 6 - auala |
|||
|

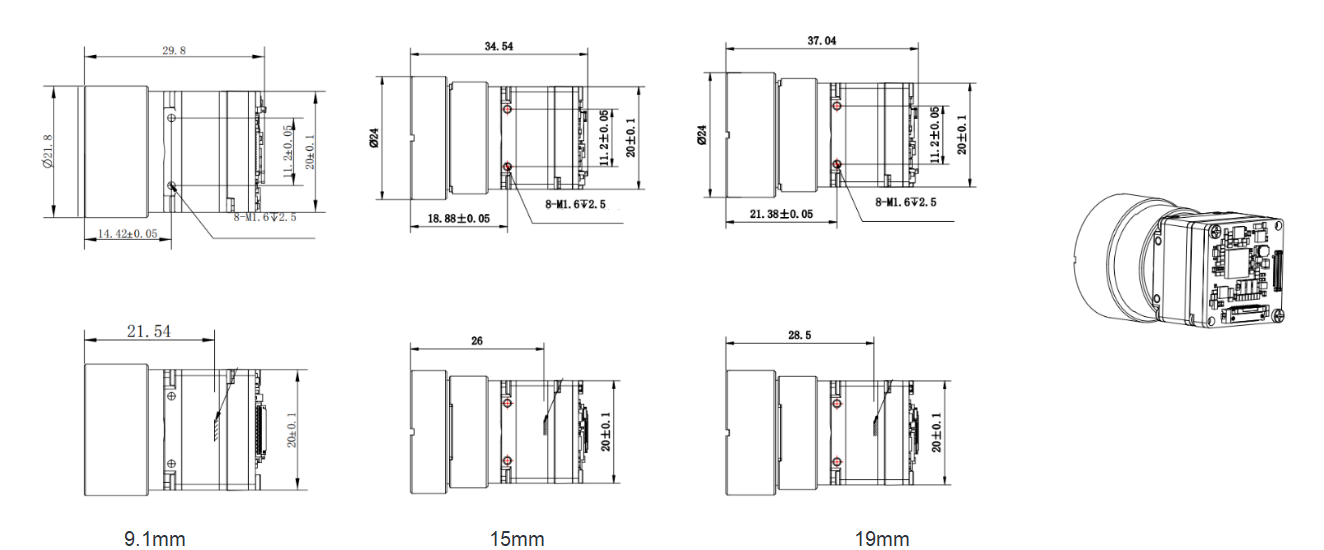

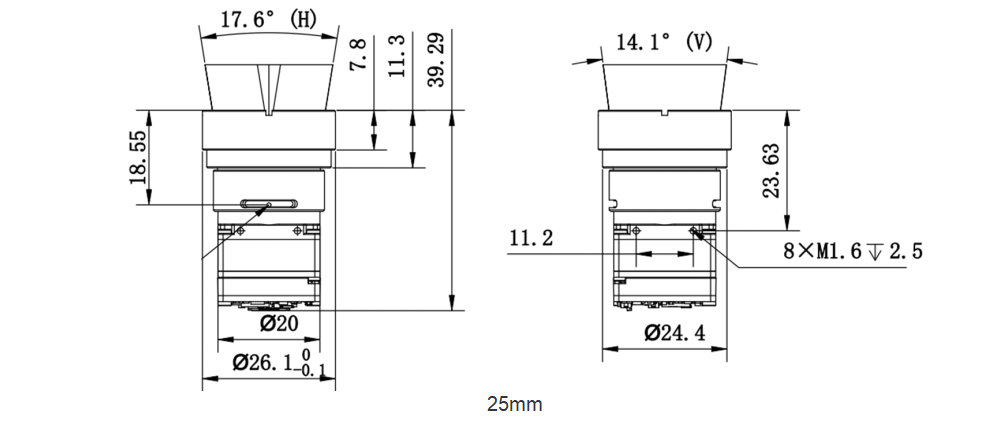

Tulaga (mm) |
29.8 * 20 * 20mm |
34.54 * 20 * 20mm |
37.04 * 20 * 20mm |
39.29 * 20 * 20mm |
|
Mamafa |
≤22g |
≤28g |
≤32g |
≤33g |
|
Galue vevela |
- 40 ° C ~ 70 ° C |
|||
