1280x1024 / 640x512 network ma numera numera o le auupega i fafo swir start module
Faamatalaga
Faʻataʻitaʻiga | SG - Swz12nd2 - 17510 | SG - SWZ0672 - 17510 | |
Sensor | Faafanua lagona | 1/2 "Sony Oasaas Global Clotter Swir Snarsor Imx990 | 1/4 "Sony Oasaas Global Spring Swir Snarsor imx991 |
| Lelei Pixels | Tusa. 1.34mp | Tusa. 0.34P | |
| Pixel tele | 5μm | ||
Tioata | Tali le tali | 1000 ~ 1700NM | |
| Ivr | Lagolagoina 2 Modes: Lautele Lautele: 1000 ~ 1700NMANMER Power: 1450 ~ 1700NM | ||
| Taugofie | 17mm ~ 510mm, 30x optical zoom | ||
| Apeorture | F2.8 ~ F5.5 | ||
| Fanua o le vaai | H: 21.3 ° ~ 0.71 °, v: 17.1 ° ~ 0.57 ° 10: 27.1 ° ~ 0.92 ° | H: 11.6 ° ~ 0.37 °: V: 9.3 ° ~ 0.3 ° ~: 14 14...300 ~ 0.47 ° | |
| Tapuni le taulaiga mamao | 1m ~ 10m (lautele ~ tele) | ||
| Zoom stress | Tusa. 7s (optisi lautele ~ Tele) | ||
Ata | Faʻamalosia | H.265 / H.264 / H.264H / MJPEG | |
| Iugafono | 25/30/50 / 60FFS @ 1280 × 1024 | 25/30/50 / 60FPS @ 640 × 512 | |
| Vitio bit fua faatatau | 32KBPS ~ 16MBPS | ||
| Audio | AAC / MP2L2 | ||
| LVDS Vitio | 25/30/50 / 60FFS @ 2mp (1920 × 1080) | ||
Upega tafailagi | Teuina | Tf card (256 GB), ftp, Nas | |
| Network protocol | Upvif, http, HTTPS, IPV4, iPv4, IPV6, RTSP, DDNS, RTP, TCP, UDP | ||
| Mauoa | Lagolago | ||
| Faʻatulagaina Faʻalelei (LVD) | Na o le faʻaleleia o le auupega e ala i le upega tafaʻilagi taulaga | ||
| Lautele Meaalofa | Lafo, Tamper, sd card, network | ||
| Vs | Tripwire, satauro palau pale, faʻalavelave, vave faʻatau, saoasaoa, o le motu o le motusia, o le motu o tagata, e leai ni mea e iloa ai. | ||
| Faaitiitia o le pisa | 2D / 3D | ||
| O le auala faatino | Tusi lesona, Auto, Apertrire Prioneripral Firphing Landter | ||
| Suiga o Taui | Lagolago | ||
| SPABY SHUPER | 1/1 ~ 1/30000 | ||
| Taulai atu | Auto / Tusi Lesona / Semi Auto | ||
| Masini ficronig | Lagolago | ||
| Vevela haze faʻaititia | Lagolago | ||
| Tatala | Lagolago | ||
| Atus | Lagolago | ||
| Digital zoom | 16x | ||
| Le puleaina o fafo | Ttl | ||
| Interface | 4pin Ethernet Port, 6pin faasologa & Pule o le Port Port, 5pin Audio Port.30 | ||
| Fesootaiga Polokalama Polokalama | Sony Visca, Talosaga D / P | ||
| Faagaoioiga aiaiga | - 30 ~ + 60 ° C / 20% ~ 80% RH | ||
| Taaloga aiaiga | - 40 ~ + 70 ° C / 20% ~ 95% RH | ||
| Paoa sapalai | DC 12v | ||
| Malosiaga taumafaina (TBD) | Ava: 6w; Max: 11W | ||

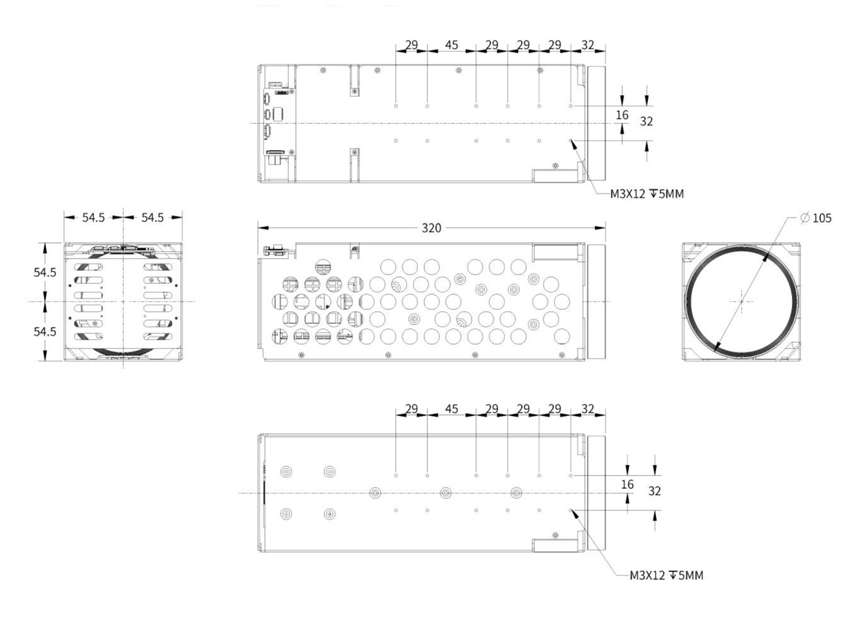

| Fuaitau (L * W * H) | Tusa. 320mm * 109mm * 109mm | ||
| Mamafa | 3.1kg | ||
Fesootaiga fesoʻotaʻiga
| Ituaiga | Numera numera | Faailoga igoa | Faʻamatalaga |
| J2_4pin Ethernet interface | 1 | Energy - | Fetuunai Ethernet Posta, Initaneti RX - |
| 2 | ETRORT + | Fetuunai Ethernet Port, Initaneti RX + | |
| 3 | Ma le 23 - | Fetuunai Ethernet Poloaia, Initaneti TX - | |
| 4 | Mathvers + | Fetuunai Ethernet Poloaia, Initaneti TX + | |
| J3_6pin party & ut interface | 1 | Dc_in | DC12V |
| 2 | Suia | Suia | |
| 3 | Rxd1 | TTL tulaga 3.3v, Pelco Proptocol | |
| 4 | TXD1 | TTL tulaga 3.3v, Pelco Proptocol | |
| 5 | Rxd0 | TTL tulaga 3.3v, visca protocol | |
| 6 | Txd0 | TTL tulaga 3.3v, visca protocol | |
| J1_5pin Gidio Inface | 1 | Audio_out | Audio i fafo (laina i fafo) |
| 2 | Suia | Suia | |
| 3 | Audio_in | Audio i le (laina i) | |
| 4 | Suia | Suia | |
| 5 | NC | NC |
LVDS interface
| Uafu | Numera | Faailoga igoa | Faʻamatalaga |
| J4_30pin LVDS Interface (tutusa ma Sony 30pin Digital Interface) | 1 | NC | NC |
| 2 | NC | ||
| 3 | NC | ||
| 4 | NC | ||
| 5 | NC | ||
| 6 | NC | ||
| 7 | NC | ||
| 8 | NC | ||
| 9 | Suia | Suia | |
| 10 | Suia | ||
| 11 | Suia | ||
| 12 | Suia | ||
| 13 | DC | DC galuega (DC + 7V ~ + 12v) | |
| 14 | DC | ||
| 15 | DC | ||
| 16 | DC | ||
| 17 | DC | ||
| 18 | Urt1_tx | TTL tulaga 3.3v, visca protocol, tutusa lava i le TXD0 i luga o le J3_6pin taulaga. Ae le mafai ona fesoʻotaʻi i le taimi e tasi. | |
| 19 | UARD1_RX | TTL tulaga 3.3v, visca protocol, tutusa lava i le rxd0 i luga o le j3_6pin taulaga. Ae le mafai ona fesoʻotaʻi i le taimi e tasi. | |
| 20 | Suia | Suia | |
| 21 | TXUOTE0 - | ||
| 22 | Txut0 + | ||
| 23 | TXUE1 - | ||
| 24 | Txutou1 + | ||
| 25 | Txut2 - | ||
| 26 | Txuout2 + | ||
| 27 | Txuotcklk - | ||
| 28 | Txuotcklk + | ||
| 29 | TXOT3 - | ||
| 30 | Txut3 + |
