1000m mamao 808nm Faʻalauiloa Laser Ismoninator module
Faʻataʻitaʻiga | SG - Ir808 - 1k |
| Manuia mamao | ≥1000m |
| Faiga | Eel (Pito i luga o le laser) |
| Galulu | 808 ± 10nm (940nm, 980nm mo filifiliga) |
| Faatafuna le malosi | ≤32w |
| Laser chip mana | 10w |
| Le malosi o le malosi | 7 ~ 8w |
| Laser beam se vaega | Vaʻaiga mamao 0.8 °, aoga mamao> 1000m, o loʻo i ai le faʻailoga a otepala <φ228m |
| Latalata i le va o le 30 °, aoga mamao> 80m | |
| Puleaina auala | Urt_Ttl, Rs - 485, tusi lesona |
| Fesootaiga Lisi | Rs - 485, TTL232, e puleaina le tusi lesona |
| Fesootaiga Polokalama Polokalama | Pelco - D (9600BPS le aoga, 4800bps, 2400bps mo filifiliga) |
| Galue faiga | Faaauau pea |
| Auaunaga Ola | > 30000h |
| Faatafuna le malosi | DC12V ± 10%, 2.1A ± 0.2A |
| Faafomai vevela | - 35 ° C ~ + 55 ° C |
| Teuina vevela | - 50 ° C ~ + 100 ° C |

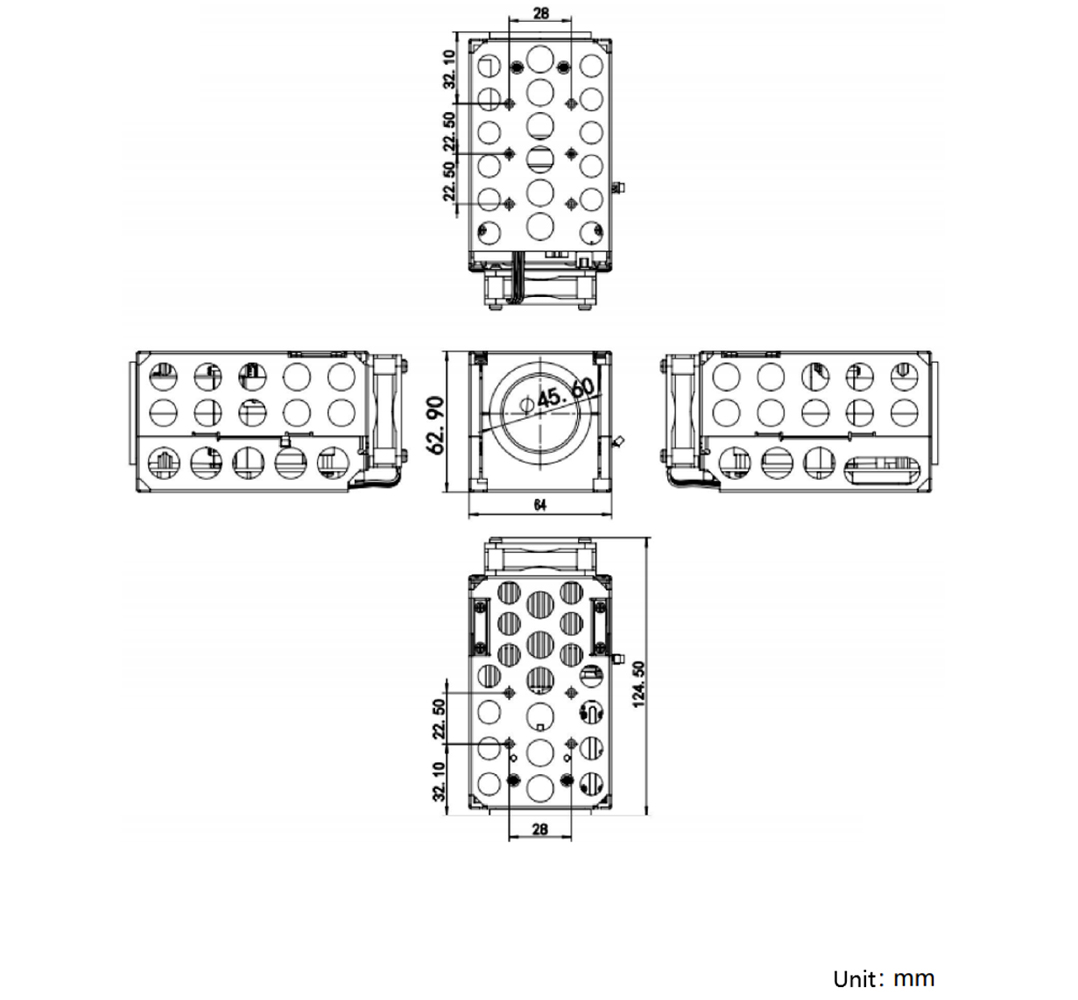

| Tulaga | 125mmx63mmx64mm |
| Mamafa | 400g |
